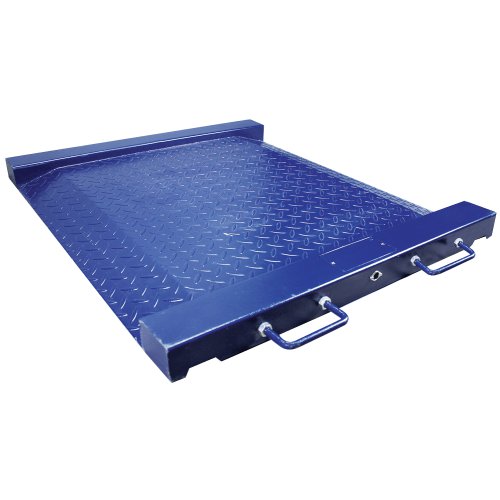

DescriptionHardwareAdjustable leveling feet help optimize setupBuilt-in ramps on each side enable easy accessDiamond-plate surface for added gripHeavy-duty rubber feet ensure stability of unitIntegrated wheels permit easy movementThree-meter/10-foot load cell cableRugged construction stands up to industrial useRamps allow easy access for wheelchair useSpecificationsCapacity 1100lb / 500kg 1100lb / 500kg 1100lb / 500kg Readability 0.2lb / 0.1kg 0.2lb / 0.1kg 0.2lb / 0.1kg Repeatability (S.D.) 0.4lb / 0.1kg 0.4lb / 0.1kg 0.4lb / 0.1kg Linearity ( /-) 0.4lb / 0.2kg 0.4lb / 0.2kg 0.4lb / 0.2kg Excitation Voltage 5 to 10V Loadcells 4 Pan Size 29.9″x22.8″ / 760x580mm Weighing Units N/A kg, lb, lb:oz, oz, N g, kg, lb, lb:oz, oz, N, custom unit Stabilization Time (sec) 2 Interface N/A RS-232 Calibration N/A External calibration Display N/A with 0″/ 0mm -high digits Backlit LCD with 0.8″/ 20mm -high digits Backlit LCD with 1.6″/ 40mm -high digits Power Supply N/A 12VDC 800mA adapter / Internal rechargeable battery Operating Temperature -10° to 40°C / 14° to 104°F Housing Mild steel base Cable Length 10′ / 3M Overall Dim. 40.2″x31.6″x3″ / 1020x803x75mm (wxdxh) Net Weight 78.2lb / 35.5kg
