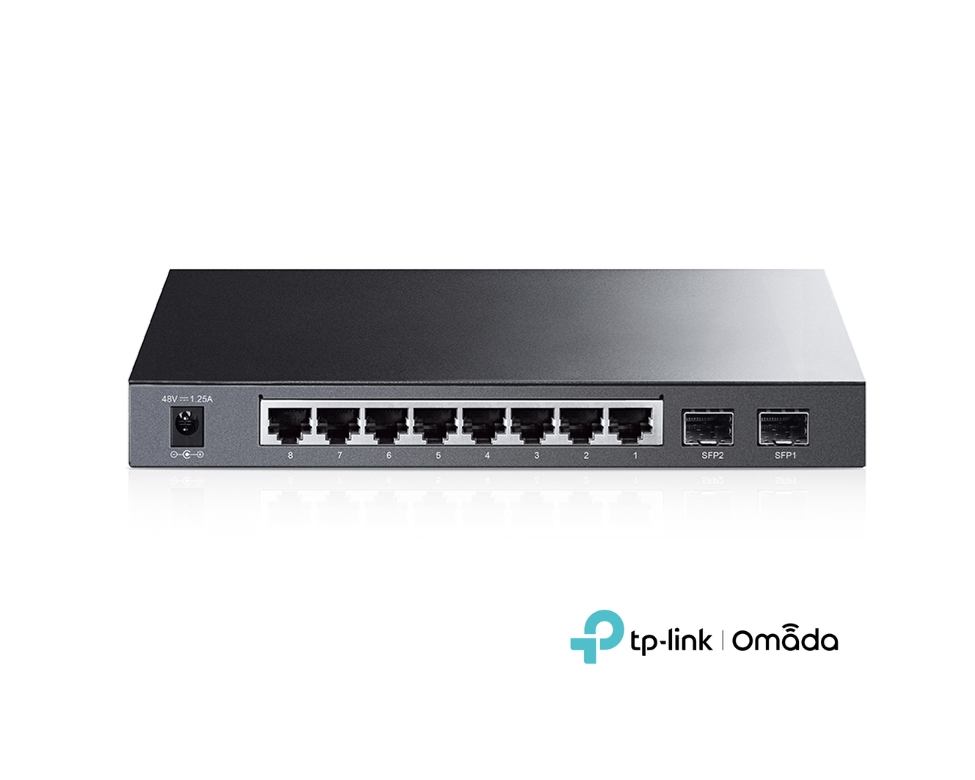

Omada 8-Port Gigabit PoE Switch with 2 SFP Slots TL-SG2210P

The TP-Link Omada TL-SG2210P is a smart managed Gigabit PoE switch with 8 PoE ports, 2 SFP uplink slots and a 53W PoE budget. Featuring VLANs, ACLs, QoS, static routing and Omada cloud management, it is ideal for CCTV systems, wireless networks, VoIP deployments and business environments. Technical Features 8 Gigabit PoE Ports 2 Gigabit SFP Uplink Slots 53W Total PoE Budget IEEE802.3af PoE Support Omada SDN Cloud Management Static Routing VLAN and ACL Support Advanced QoS Features IGMP Snooping Enterprise Security Features IPv4 and IPv6 Support Fanless Design   Technical Details Standards and Protocols: IEEE802.3i IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3ad IEEE802.3af IEEE802.3x IEEE802.1d IEEE802.1s IEEE802.1w IEEE802.1q IEEE802.1p IEEE802.1x Interfaces: 8 × 10/100/1000Mbps RJ45 Ports 2 × 1000Mbps SFP Slots Auto Negotiation Auto MDI/MDIX Network Media: 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m) 100BASE-TX/1000BASE-T: UTP Category 5, 5e Or Above Cable (Maximum 100m) 1000BASE-X: MMF, SMF Fan Quantity: Fanless Power Supply: 100-240VAC, 50/60Hz External Power Adapter: 48VDC / 1.25A PoE Standard: IEEE802.3af PoE Ports: 8 PoE Budget: 53W Dimensions: 209 × 126 × 26mm Mounting: Desktop / Wall Mount Maximum Power Consumption: 63.4W (PoE On) 10.4W (PoE Off) Switching Capacity: 20Gbps Bandwidth / Backplane: 20Gbps Packet Forwarding Rate: 14.9Mpps MAC Address Table: 8K Packet Buffer Memory: 512KB Jumbo Frame: 9216 Bytes Quality of Service: 802.1p CoS Priority DSCP Priority 4 Priority Queues SP Scheduling WRR Scheduling SP WRR Scheduling Port-Based Rate Limiting Flow-Based Rate Limiting Voice VLAN L2 and L2 Features: 16 IPv4/IPv6 Interfaces Static Routing 32 IPv4/IPv6 Static Routes DHCP Server DHCP Relay DHCP Interface Relay DHCP VLAN Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Static Link Aggregation 802.3ad LACP Up To 8 Aggregation Groups Up To 8 Ports Per Group STP (802.1D) RSTP (802.1W) MSTP (802.1S) TC Protect BPDU Filter BPDU Protect Root Protect Loopback Detection 802.3x Flow Control Port Mirroring CPU Mirroring One-To-One Mirroring Many-To-One Mirroring Flow-Based Mirroring Ingress/Egress/Both Monitoring DLDP LLDP LLDP-MED Advanced Features: Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule VLAN Features: Supports Up To 512 VLANs Simultaneously 4K VLAN IDs 802.1Q VLAN Access Control Lists: L2-L4 Packet Filtering MAC ACL IP ACL TCP/UDP Port Filtering 802.1p Filtering DSCP Filtering Protocol Filtering VLAN ID Filtering Time-Based ACL Security Features: SSH v1/v2 SSL v2/v3 TLS v1 Port Security Storm Control 802.1X Authentication RADIUS Authentication IP-MAC-Port-VID Binding ARP Inspection DHCP Snooping DoS Protection  IPv6 Features: IPv6 Static Routing IPv6 ACL Dual IPv4/IPv6 Stack IPv6 Interface MLD Snooping Neighbor Discovery Path MTU Discovery ICMPv6 TCPv6 UDPv6 DHCPv6 Client Ping6 Tracert6 Telnet IPv6 SNMP IPv6 SSH IPv6 SSL IPv6 HTTP/HTTPS IPv6 IPv6 TFTP Multicast Features: IGMP Snooping V1/V2/V3 Management Features: Omada App Support Omada Cloud Controller OC200 Controller Support OC300 Controller Support Omada Software Controller Cloud Access Zero-Touch Provisioning Web GUI CLI Management SNMP v1/v2c/v3 SNMP Trap/Inform RMON CPU Monitoring Cable Diagnostics EEE SNTP System Log MIB Support: RFC1213 MIB II RFC1493 Bridge MIB RFC2674 P/Q Bridge MIB RFC2620 Radius Accounting Client MIB RFC2618 Radius Authentication Client MIB RFC2925 Remote Ping And Traceroute MIB TP-Link Private MIBs RMON MIB RFC1757 Certifications: CE, FCC, RoHS Operating Temperature: 0°C ~ 40°C Storage Temperature: -40°C ~ 70°C Operating Humidity: 10% ~ 90% Non-Condensing Storage Humidity: 5% ~ 90% Non-Condensing   Package Contents: TL-SG2210P Power Adapter Installation Guide Resource CD Rubber Feet
