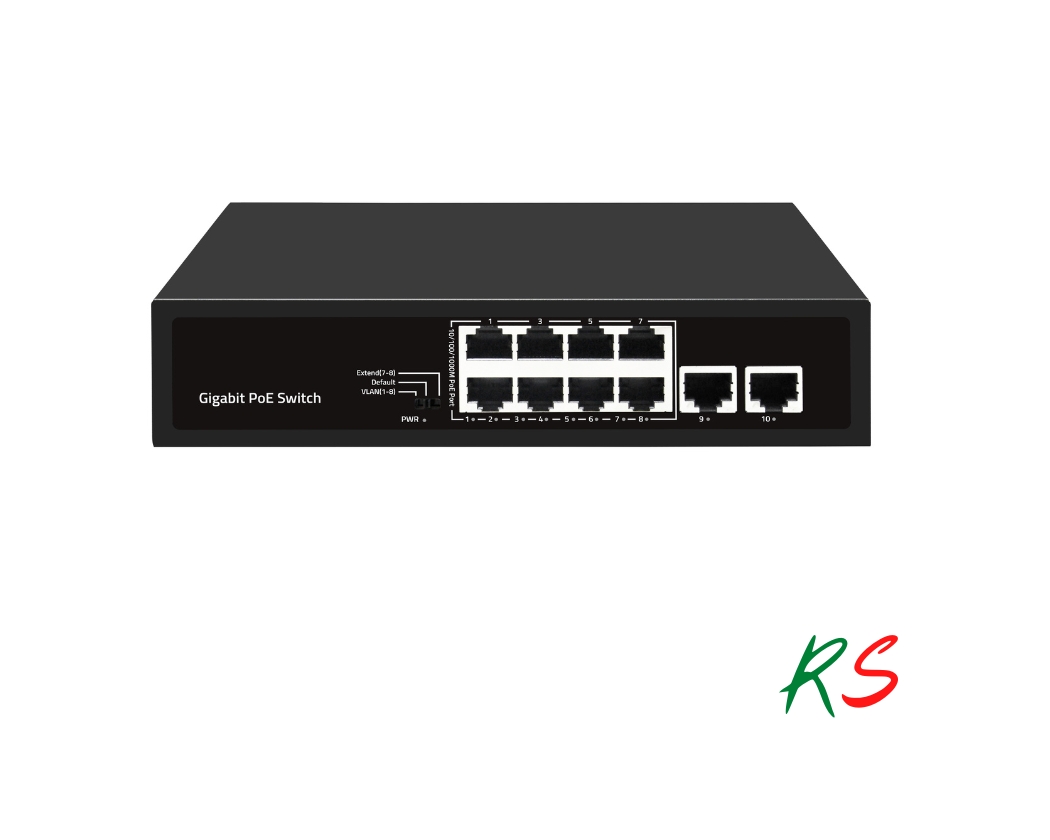

The SST-P8ET2ET Gigabit PoE Switch features 8 PoE ports and 2 Gigabit uplink ports, delivering reliable power and data transmission for IP cameras, wireless access points, VoIP phones, and network devices. With VLAN and Extend modes, it supports transmission distances up to 250m for surveillance and enterprise applications. Technical Features 8 × Gigabit PoE Ports 2 × Gigabit RJ45 Uplink Ports IEEE802.3af/at PoE Support 110W Total PoE Power Budget VLAN Isolation Mode Extend Mode up to 250m Gigabit Auto-Negotiation Ports Auto MDI/MDIX Support 20Gbps Switching Capacity 4KV Surge Protection Fanless Design Desktop Installation Technical Details Model: SST-P8ET2ET Interfaces: 8 × 1G PoE Ports, 2 × 1G RJ45 Uplink Ports Port Standards: IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control) Switching Bandwidth: 20Gbps Packet Forwarding Rate: 14.88Mpps Packet Buffer: 1Mbit MAC Address Table: 2K Transmission Method: Store and Forward PoE Standards: IEEE802.3af (15.4W), IEEE802.3at (30W) PoE Specifications PoE Output Voltage: DC 44-57V Ports 1-8 PoE Power Output: <30W Per Port PoE Power Budget: 110W Port Surge Protection: Common Mode 4KV, Differential Mode 2KV Electrostatic ESD Protection: Air 8KV, Contact 6KV Operating Temperature: 0°C ~ 40°C Storage Temperature: -40°C ~ 70°C Operating Humidity: 10% ~ 90%, Non-Condensing Storage Humidity: 5% ~ 95%, Non-Condensing AC Input: 100-240V 50/60Hz DC Output: 52V 2.3A Mainboard Power Consumption: 6.5W Product Dimensions: 200 × 118 × 44mm Packaging Dimensions: 245 × 190 × 60mm Product Net Weight: 0.71kg Product Gross Weight: 0.99kg Fan Quantity: 0 Installation: Desktop LED Indicators PWR Green LED On: Powered On Off: Powered Off Ports 1-10 Green LED On: 10/100/1000Mbps Link Normal Off: Link Blocked Flashing: Data Transmitting Operating Modes VLAN: Ports 1-8 Are Isolated From Each Other And Communicate With Ports 9-10 Default: All Ports Communicate With Each Other, Transmission Distance Up To 100m, Transmission Rate 10/100/1000Mbps Adaptive Extend: Ports 7-8 Forced To 10Mbps and Transmission Distance Extended Up To 250m Package Contents: Switch × 1, Power Cord × 1, Manual × 1, Certificate Of Inspection × 1
